Sagab Volt Stick AC Voltage / Magnetic Field Detectors

  • Volt Stick 203V
    – The Volt Stick is an instant tester for safely checking the presence of an AC voltage
  • Volt Stick Sound
    – The Volt Stick Sound features a detection buzzer for even greater clarification in hard to see areas
  • Magnet Stick
    – The Magnet Stick provides safe and simple checking for the presence of magnetism

SKU: N/A Categories: , Brand:

24.5930.56 inc.Vat

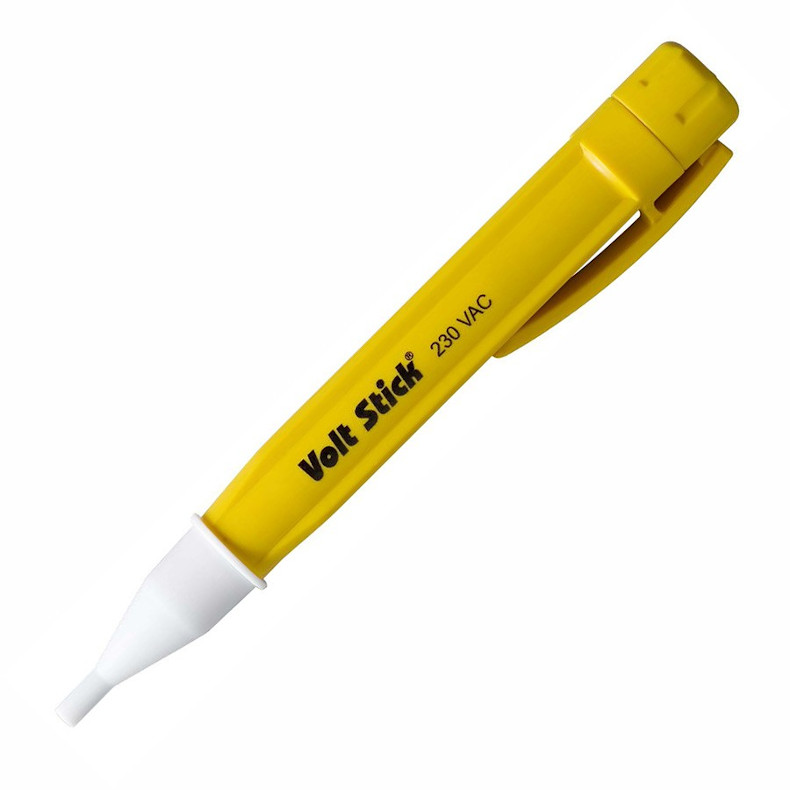

Volt Stick 230V – Voltage Indicator

The original and still the best, Volt Stick is an instant tester for safely checking the presence of an AC voltage, without making any disconnections in cables, wall sockets, fuses, circuit breakers, junction boxes, etc. No current flow is needed for correct operation. The red indicator in the tip will illuminate on detection of AC voltage simply by applying the tip close to any connection point, or moving it along any insulated cable.
– Locates breaks in cables
– Detects blown fuses inside plugs or fuse holders
– Distinguishes between live and neutral wires in both single and three-phase supplies
– Identifies voltage-carrying cables in junction boxes
– Locates defective in-series light bulbs
Voltage range – 230-1000V AC
Response Time – Immediate
Batteries – 2 x 1,5V AAA (supplied)
Relative Humidity – 80% @ 30°C, 50% @ 40°C
Operating Temperature – minus 20 ~ +50°C
Overvoltage – CAT III 1000V AC
Dimensions / Weight – 145(L) x 18(Ø) mm / 35g (including batteries)

Volt Stick Sound

The Volt Stick Sound features a detection buzzer for even greater clarification. Also ideal for ‘detection round corners’, in bright daylight and in awkward out of sight areas. Volt Stick Sound is an instrument for safely checking the presence of an AC voltage in cables, wall sockets, fuses, junction boxes, etc. No current flow is needed for correct operation. Voltage indication by means of both a bright red light signal at the tip and a buzzer. Low battery indicator. When the buzzer does not sound while measuring, the batteries must be changed.
– Locates breaks in cables
– Detects blown fuses inside plugs or fuse holders
– Distinguishes between live and neutral wires in both single and three-phase supplies
– Identifies voltage-carrying cables in junction boxes
– Identifies faulty in-line switches
– Locates defective in-series light bulbs
Voltage range – 230-1000V AC
Sensitivity – Indicator will illuminate at 4mm distance of conductor carrying 230V
Response Time – Immediate
Batteries – 2 x 1,5V AAA (supplied)
Relative Humidity – 80% @ 30°C, 50% @ 40°C
Operating Temperature – minus 20 ~ +50°C
Overvoltage – CAT III 1000V AC
Dimensions / Weight – 145(L) x 18(Ø) mm / 35g (including batteries)

Magnet Stick

The Magnet Stick provides safe and simple checking for the presence of magnetism. Upon testing and without metallic contact, the lamp lights immediately where there is a magnetic field (e.g. an activated coil in a solenoid valve). Equipment can be tested without having to switch it off and magnetic coils can often be tested through their protective cover, saving hours of dismantling time.

The Magnet Stick responds to all kinds of magnetic fields from alternating or direct current, to permanent magnets. Powerful red light in the tip indicates presence of a magnetic field.

– Testing operating solenoid valves in pneumatic and hydraulic control equipment
– Testing relays with coils and electrically-controlled solenoid valves in all types of vehicles and machines
– Testing solenoid valves when servicing oil burners
Sensitivity – 300 Gauss, (0,3 mT)V
Response Time – Immediate
Batteries – 2 x 1,5V AAA (supplied)
Relative Humidity – 80% @ 30°C, 50% @ 40°C
Operating Temperature – minus 20 ~ +50°C
Overvoltage – CAT III 1000V AC
Dimensions / Weight – 145(L) x 18(Ø) mm / 35g (including batteries)
