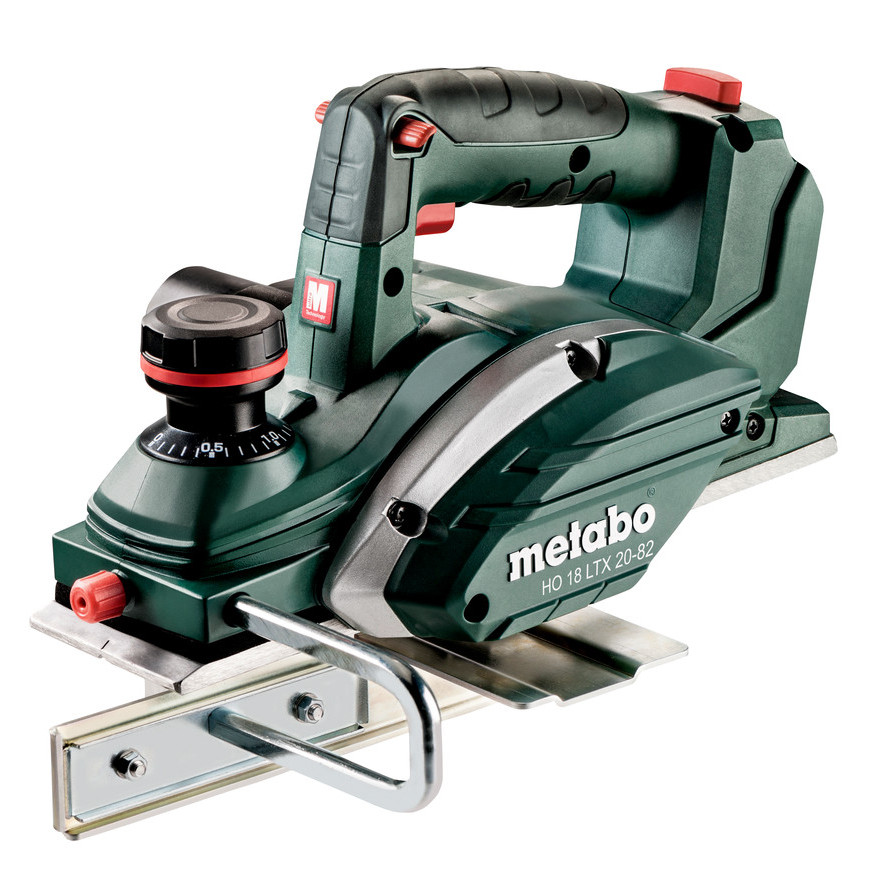

Metabo HO18 LTX 20-82 Planer Carcass

• Light, compact cordless planer for planing, rebating and chamfering.
• Adjustable planer depth and notch depth.
• Aluminium die cast and milled cut planer base with V-groove for easy chamfering.
• Parallel guide / rip fence for precise guiding of the planer.
• Grip area with non-slip soft-grip surface.
• Extraction possibility by means of connecting an all-purpose vacuum cleaner.
• Angled chip ejection adapter for controlled ejection of the wood shavings.
• Easy to empty textile dust bag for working without extraction facilities.
• Strap on the planer base for stopping the machine and to protect the work piece.
• Easy blade change of the robust reversible carbide planer blades.
• Soft start and overload protection for long service life of motor and drive.

Technical Specifications

• Battery pack voltage 18 V.
• Planing width 82 mm.
• Adjustable planing depth 0 – 2 mm.
• Maximum notch depth 9 mm.
• No-load speed 16000 rpm.
• Length of planer base 295 mm.
• Vibration.;Planing soft wood 3.3 m/s².
• Uncertainty of measurement K 1.5 m/s².
• Noise emission.;Sound pressure level 84 dB(A).
• Sound power level (LwA) 95 dB(A).
• Uncertainty of measurement K 3 dB(A).

Set Contents

• Reversible carbide planer blades.
• Parallel Guide / Rip Fence.
• Depth gauge.
• Chip ejection adapter.
• Textile dust bags.
• MetaLoc case.
